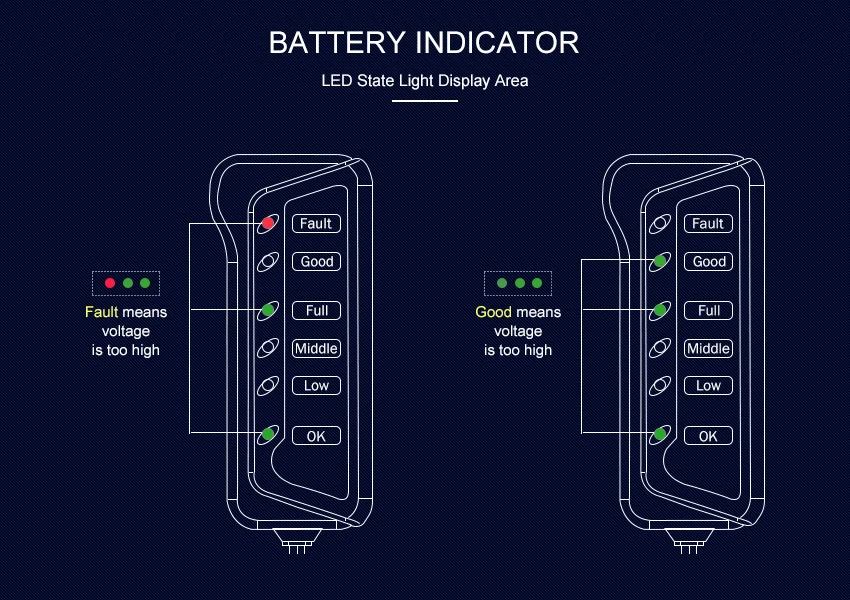

Different Led display to show Battery Sate :
Display 1: All Led lights off; Testing results: none Charging Voltage, Dead Battery
Display 2:”ON” led twinkling, other Led off; Testing results:4.6-11.2V Charging Voltage, Engine being hardly turned on, turn off all electrical equipment and charge battery immediately.
Display 3: ”ON” Led ON,”LOW” Led twinkling; Testing results:11.2-11.6V Charging Voltage, Low charged Battery, being charged immediately.
Display 4:”Low” led on, ”Middle” led twinkling; Testing results: 11.6-12.2V Charging Voltage, Middle charged Battery, better being charged sooner.
Display 5: “Middle” Led on; Testing results: 12.2V Charging Voltage, Middle charged Battery, better being charged.
Display 6: “Middle” Led on, ”Full” Led twinkling; Testing results: 12.2-13.1V Charging Voltage, Middle charged Battery, better being charged.
Display 7: “Full” Led on, ”Good” Led twinkling; Testing results: 13.1-14V Charging Voltage, Good battery, Full Charged
Display 8:”Good” Led on; Testing results: 14V Charging Voltage, Good battery, Full Charged.
Display 9:”Good” Led on, “Fault” Led twinkling; Testing results: 14-16V Charging Voltage, Battery may be damaged, Check the engine and tester.
Display 10:“Fault” Led on; Testing results: Above 16V Charging Voltage, fault Battery.

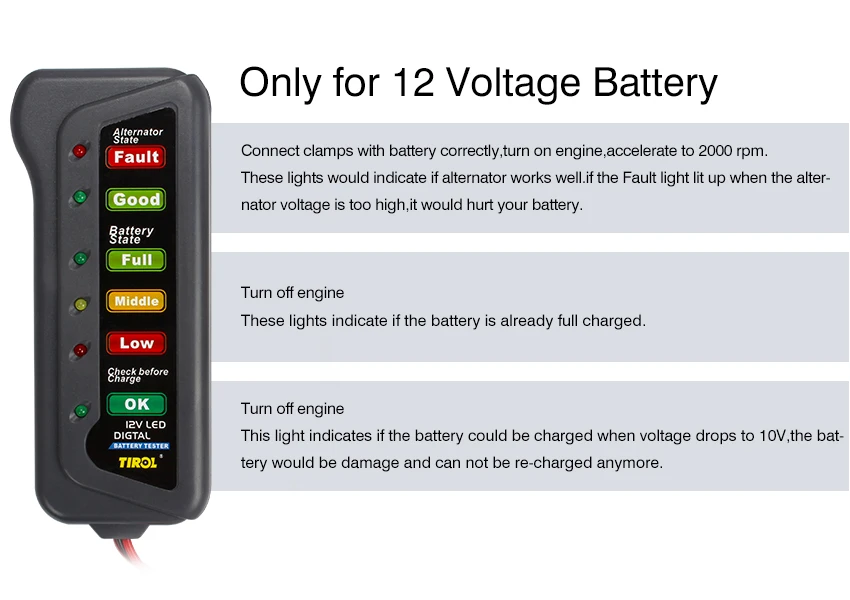

Tirol Car Battery Tester 6 LED Lights:
Alternator state check:
First light (red): Fault
Second light (green): Good
Third light (green): Full
Battery state check:
First light (yellow): Middle
Second light (red): Low
Third light (green): OK
Tirol Car Battery Tester Specification
LED quantity: 6 (2 red, 3 green and 1 yellow)
Material of wire: 0.06square millimeter copper
Max. voltage and current: 12V 15A
Length of wire: 25cm / 9.84in
Battery tester size: 12 * 5.2 * 1.8cm / 4.7 * 2 * 0.7in
Features: Portable
Functions: Improve driving safety
Material : Plastic, Copper
Color : Gray
